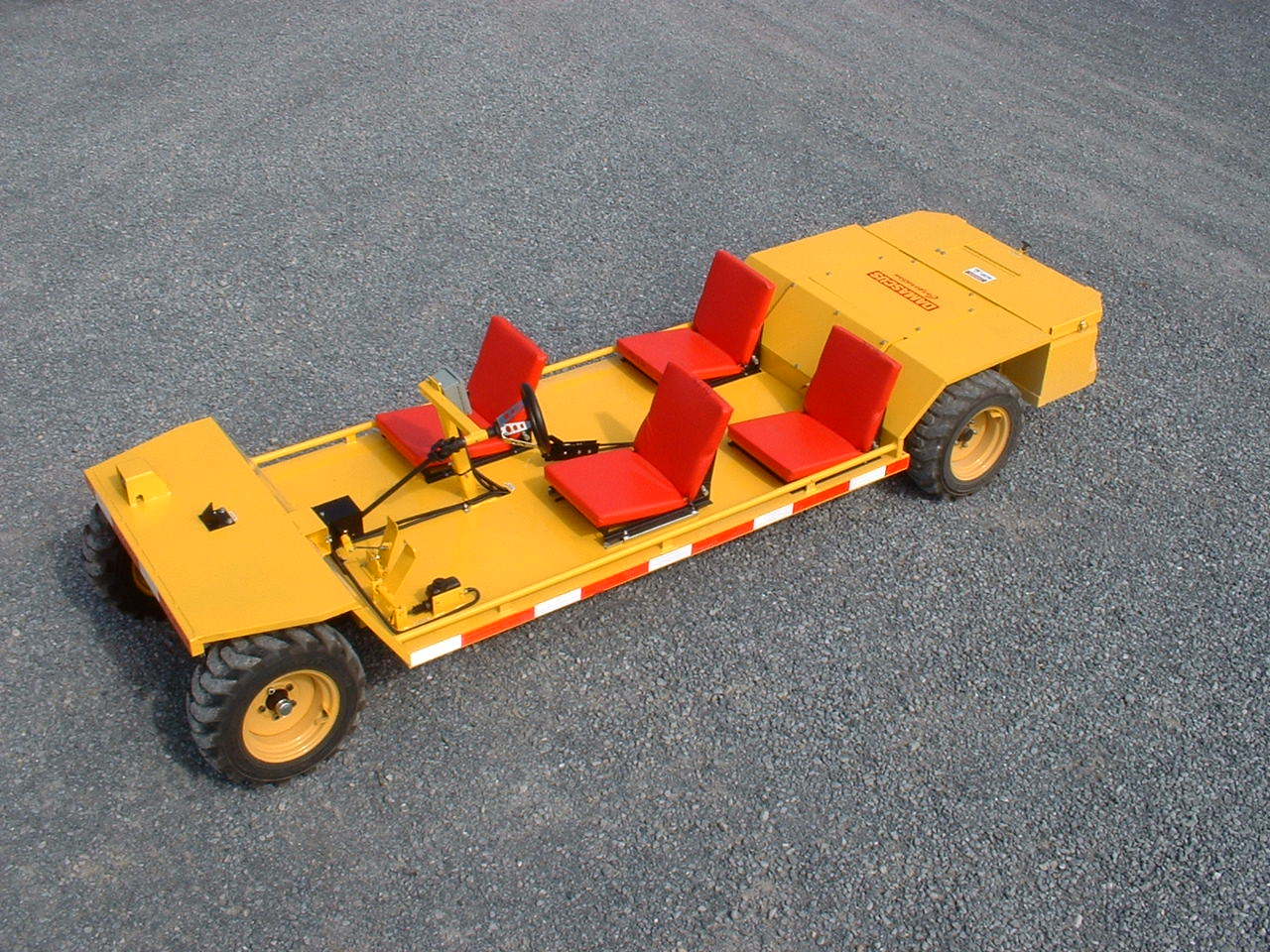

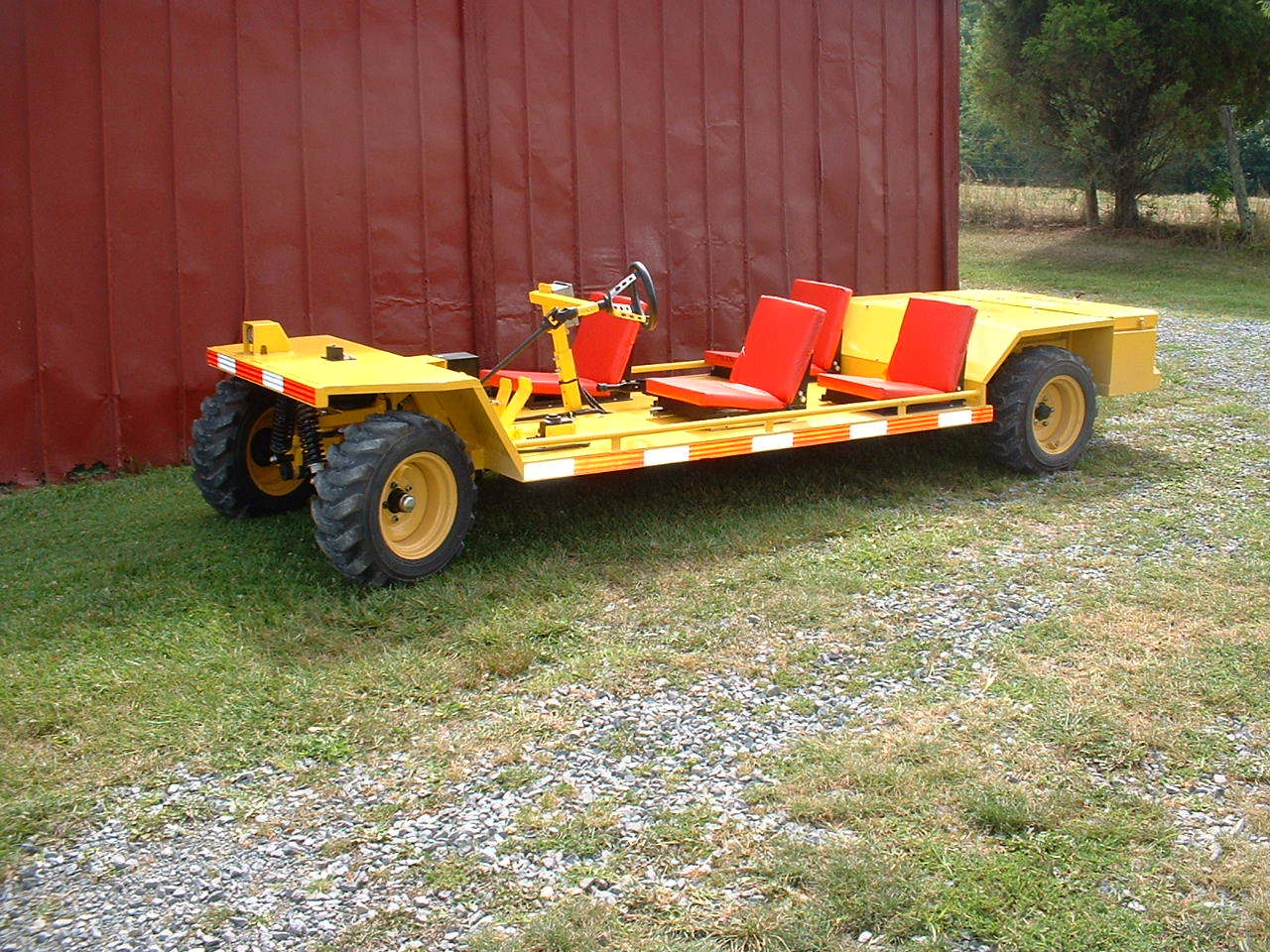

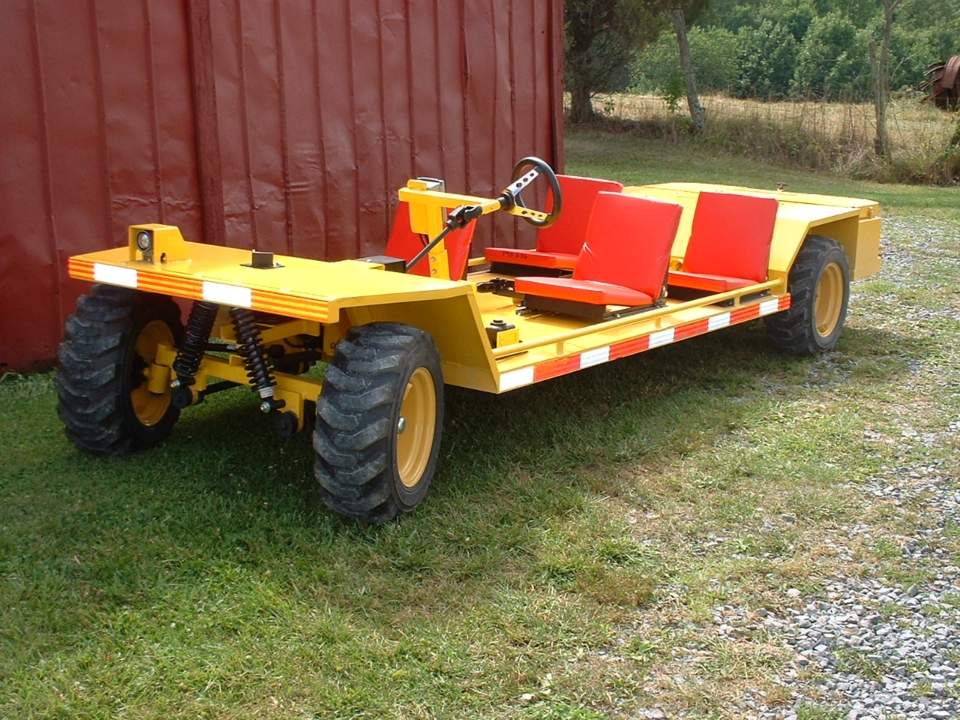

MAC-4-AC Transporter
Specifications
MAC-4-AC Brochure Download
Description
  • • AC controller with regenerative braking
  • • AC 8 HP brushless high torque electric motor
  • • No forward / reverse contactors
  • • Heavy duty on-board charger
  • • 48V battery system
  • • Automotive type steering sector
  • • Adjustable steering wheel height
  • • Heavy-duty, seven point, rubber-mounted front suspension with coil-over shocks with air ride
  • Roller bearing steering knuckles
  • 5,200 lbs heavy duty rear axle
  • Dimensions

    Height: 26" std. to top of rame.

    Width: 4’-0” Standard.

    Length: 13’-3 ½”

    Turning Radius: 10’ I.S.

  • Ground Clearance

    11 ½” Standard

  • Weight

    1,650 lbs

  • Payload

    4 person plus Tools and Equipment

  • Electrical

    48 Volt AC programmable controller with on-board dash display, no foward / reverse contactors, manual battery disconnect

  • Battery

    8 — 6 Volt 145 Minute @ 75 Amp, 215 Amp @ 20 Hr. Rate

  • Battery Charger

    Quik Charge on-board automatic charger.


    Input: 115 Volt — 1 Phase —10 Amp

    Output: 48 Volt — 18 Amps

  • Headlights

    One Front/Rear, 12-volt

  • Motor

    8 HP — AC motor — no brushes or commutator — Continuous — high torque

  • Brake

    Re-Generative braking within electrical circuit assisted by Hydraulic disc/caliper brake, mounted on rear axles

  • Rear Axle

    5200# Rear Axle with Tapered Roller Bearings, Grease Fittings at Wheel Bearings

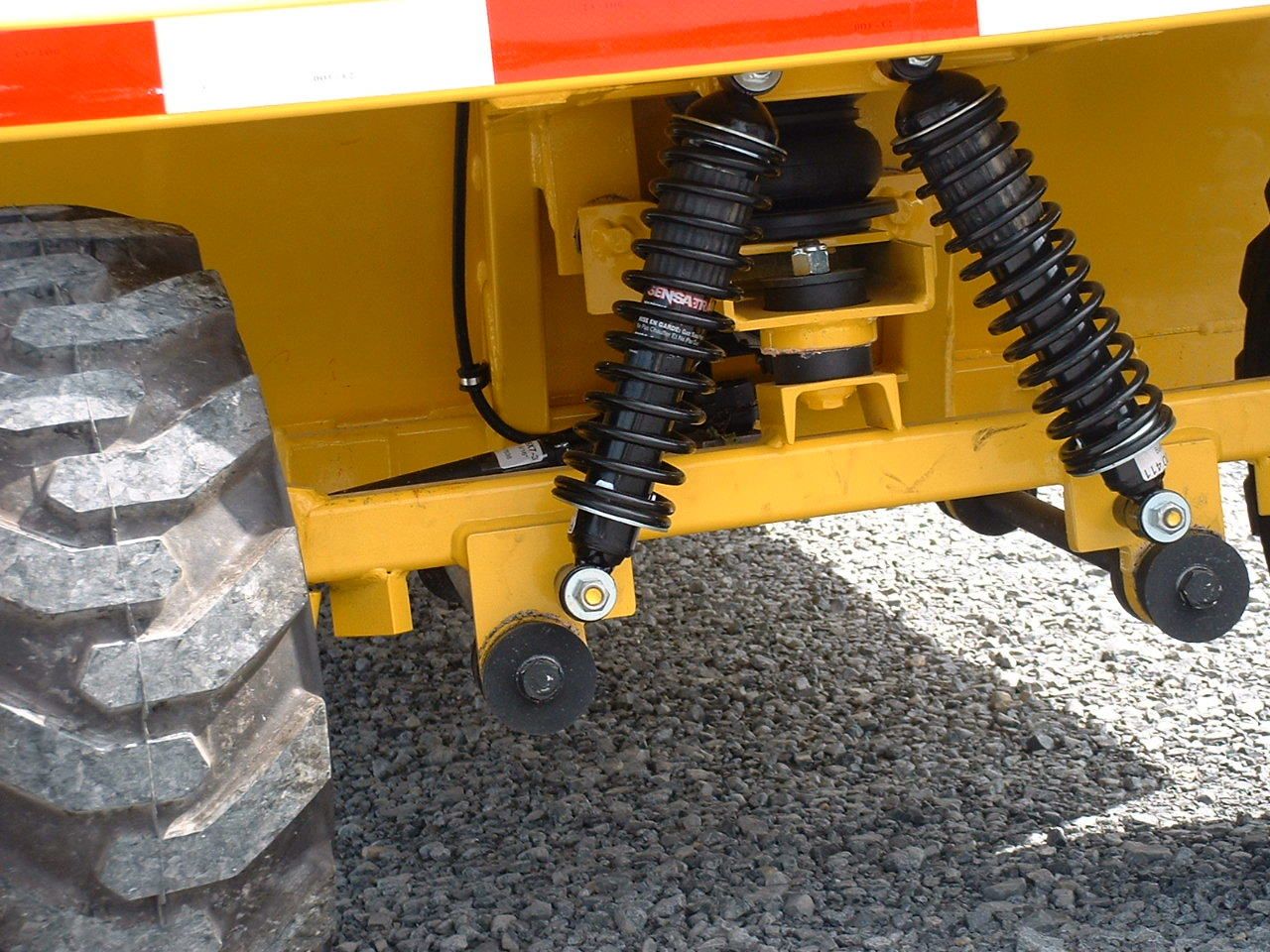

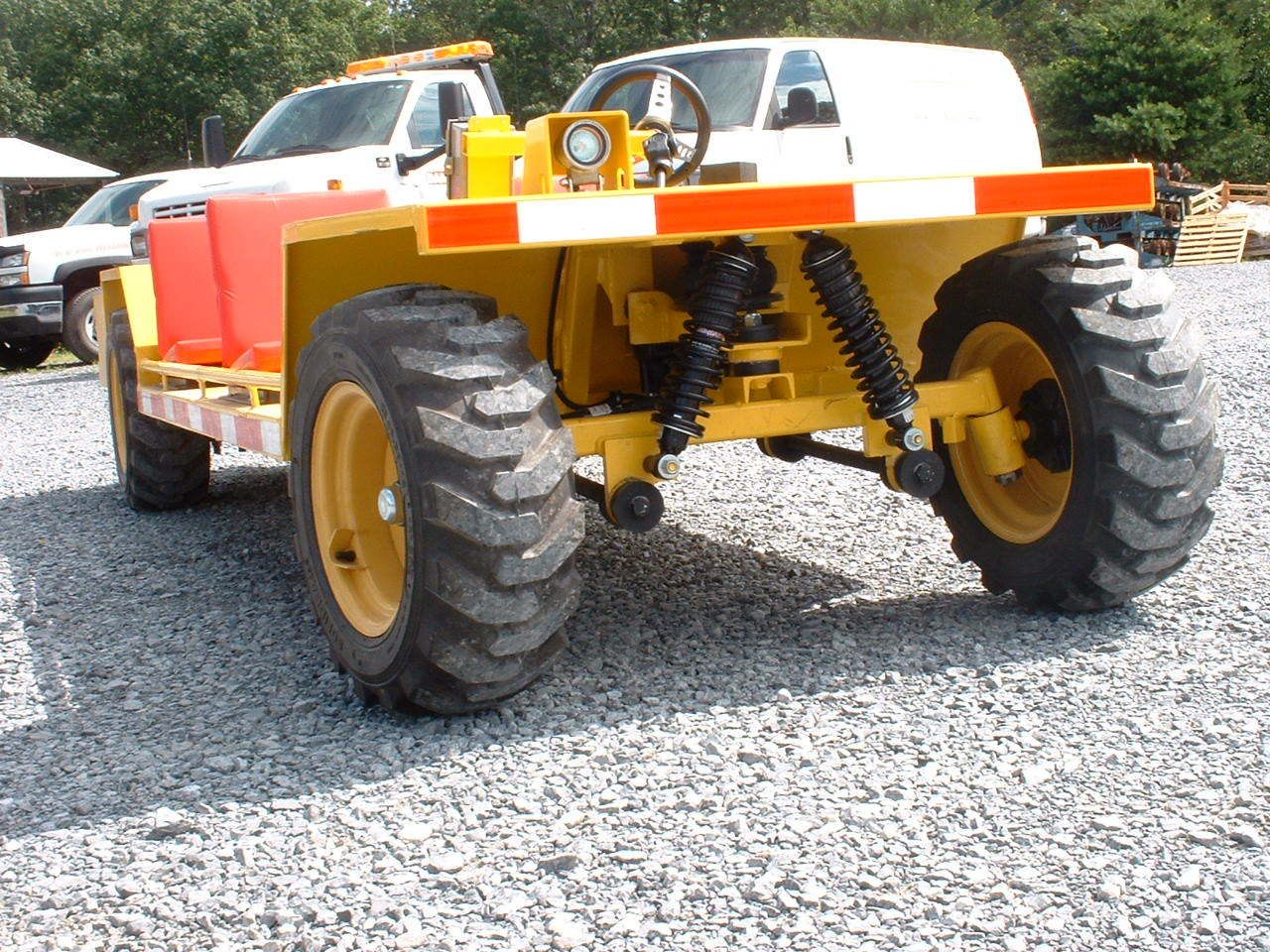

  • Front Suspension

    Triple acting front Suspension is Rubber Mounted for a Smooth Maintenance Free Ride.  Airbag on Trailing Arm for Adjustability

  • Rear Suspension

    Heavy Duty Leaf Springs with Gas Shocks

  • Tires

    Front: 20.5x800x10, 8 Ply Rating.


    Rear: 23 x 8.50x12, 4 Ply Rating,


    (Other sizes available)

  • Tram Speed

    12 Miles per hour, approx. Low speed 6

  • Options

    Seats, Canopy, Tires, Lift Kit, Strobe Light
