Height: 26” Standard

Width: 6’-0” or 8’-0”

Length: 14’-0”

Turning Radius: 12’-6” I.S.

8 ½” Standard

13” with optional lift kit

2,740 lbs

2500#, 6-8 men, 10-12 with optional deck extensions

48 volt MOSFET controller, forward/reverse/bypass contactors, circuit breaker with shunt trip encased in sealed enclosure

8 — 6 volt Trojan T-145, battery level indicator on control panel. Removable battery pack

Heavy duty parallel shaft

Lester Electrical, Lestronic II, automatic timer

Input: 230 volt — 1 phase — 15 amp

Output: 48 volt — 50 amp

(PA approved underground charger available)

Two front, two rear, halogen, 48 volt no resistor required

Heavy duty DC motor-continuous-TENV

Hydraulic caliper service brake and mechanical parking brake both using a 10” rotor mounted on speed reducer output shaft

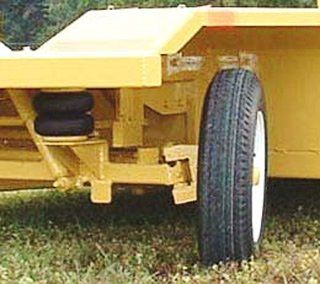

Front — Rubber mounted A frame style axle with soft ride air suspension, heavy-duty gas shocks and overload bumpers Rear — HD leaf springs with heavy duty gas shocks and rubber overload bumpers

A frame style with 3500 lbs spindles, automotive king pins and tie rods

Automotive type 2700 lbs

Front: 530 x 12 — 6 ply rating

Rear: 26 x 12.00 x 12 — 8 ply rating

(Other size available)

7 miles per Hour
